Product Detail

Product Information:

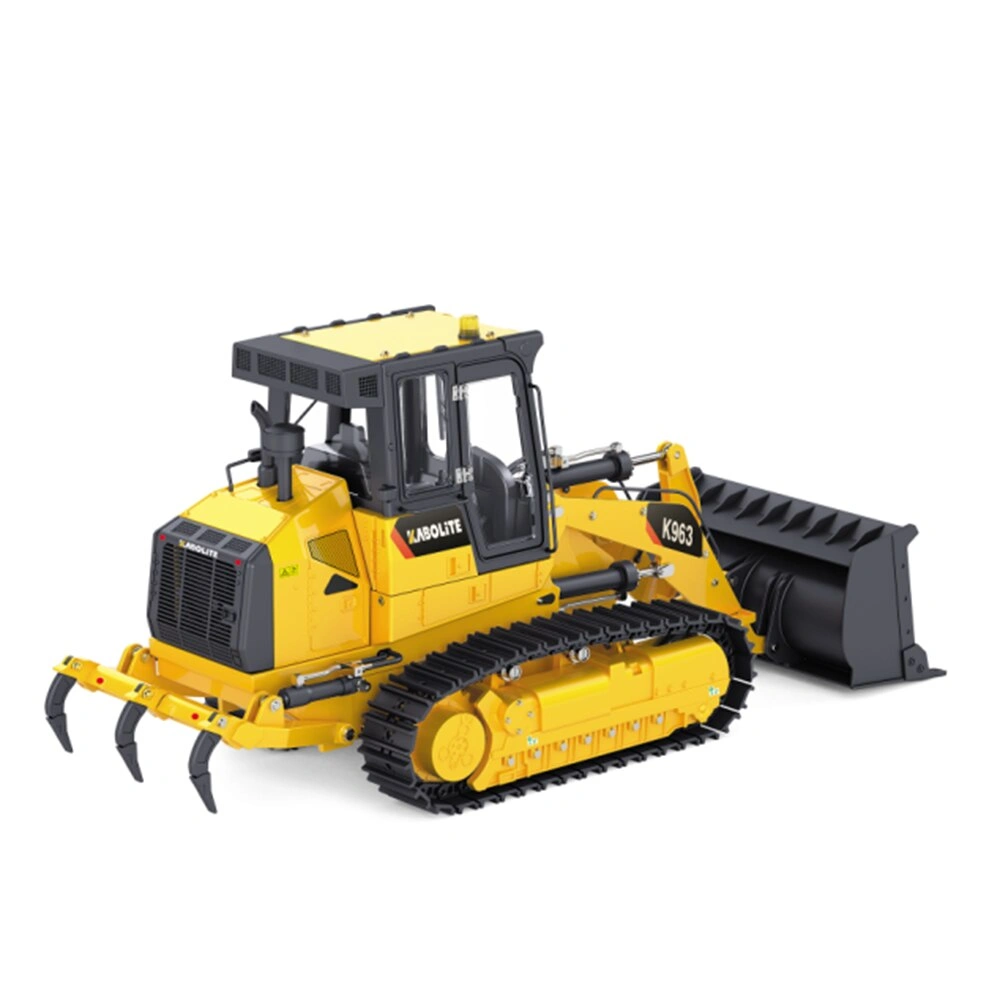

- Product Name: Kabolite 963 RC Crawler Loader
- Dimensions: 533mm x 188mm x 242mm
- Weight: 8.44 kilograms
- Outer Box Dimensions: 68cm x 27.5cm x 36.5cm
- Gross Weight: 12.06 kilograms / Net Weight: 10.8 kilograms
- Bucket Capacity: 0.000635 cubic meters
- Speed: 2000 to 5000 revolutions per minute
- Reprinting Capacity: 10-15 kilograms

Battery Information:
- Battery Type: 18650/7500mAh 7.4V 5c
- Usage Time: 60 minutes
- Charging Time: 300-360 minutes

Performance Parameters:
- Speed Standard: 0.42 meters per hour
- Straight Walking Standard: 2 meters for 2 meters of movement
- Steering Diameter: within 1 meter
- Track Suspension Angle: approximately 10 degrees
- Boom Lifting Weight: 1.5 kilograms
- Bucket Lifting Weight: 1.5 kilograms
- Remote Control Distance: at least 25 meters

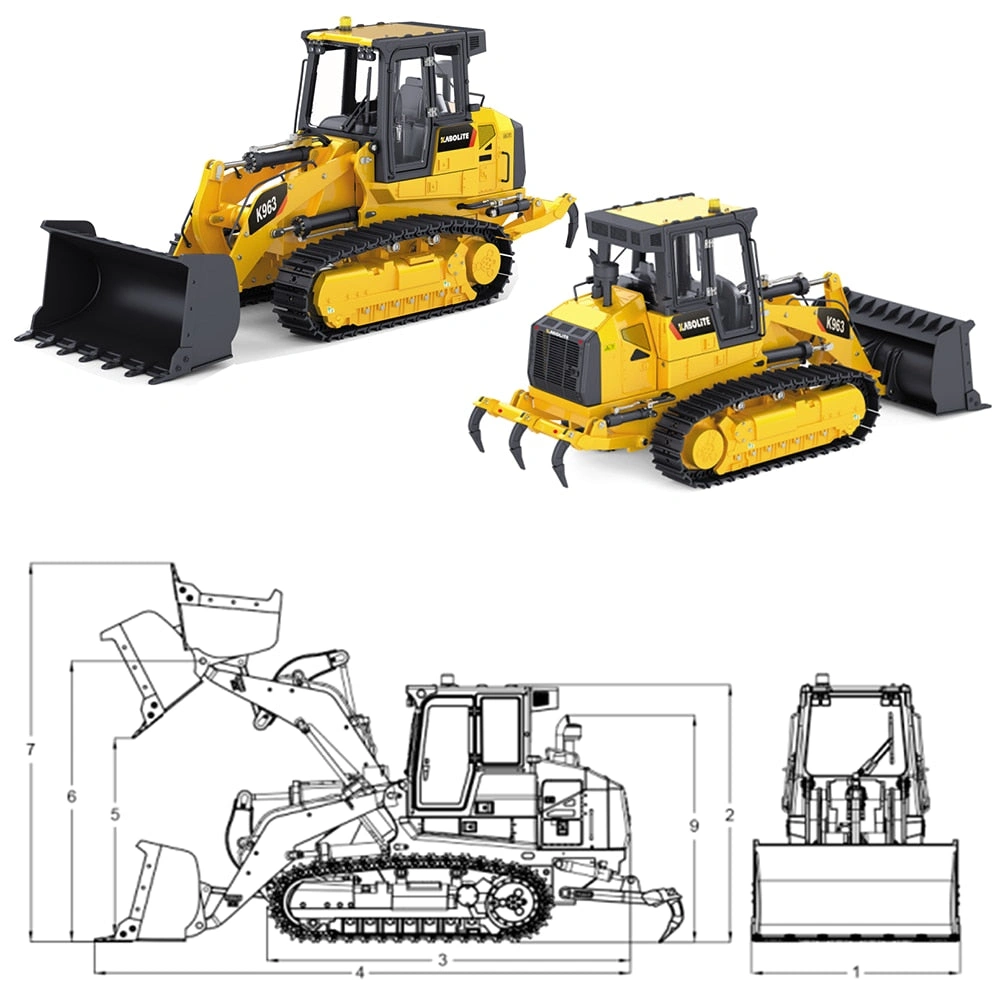

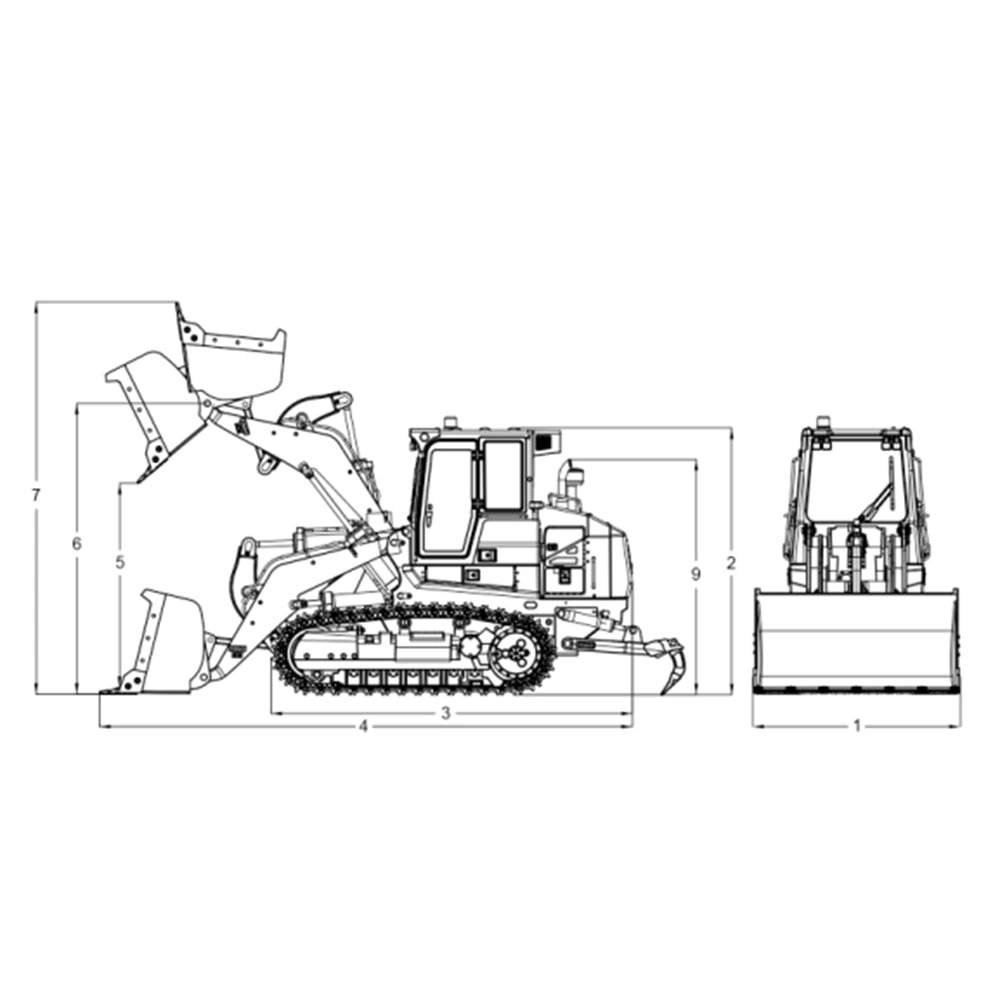

Basic Parameters:
1. Body Width: 188.44mm
2. Body Height: 242.24mm
3. Distance from Rear to Front Track: 328.33mm
4. Distance from the Rear of the Car to the Bucket: 241.7mm
5. Bucket Tilt to Ground Distance: 190.88mm
6. Distance from the Ground to the Flat Bucket: 213.73mm
7. Tilt Angle from the Rear of the Car to the Ground: 34 degrees
